1 Introduction
The switching devices in power distribution systems are usually installed using a feeder automation mechanism to isolate fault sections.This method is quite helpful for quickly recovering non-fault sections in the power supply,effectively improving power supply reliability,and controlling user power shortage cost [1-3].With an increase in the number of switching device installations,the costs associated with equipment investment,maintenance,and operation have substantially increased [4-6].Power distribution systems in China are characterized by numerous loads,branches,and segments,making it impossible to realize global setting of the switching devices [7-9].In this context,research on the application of artificial intelligencebased optimization methods to determine the optimal location of switching devices is ongoing [10-14].
Abdelaziz et al.used a Tabu list with a variable size according to the system size and proposed a distribution system reconfiguration method based on a modified Tabu search (TS) algorithm [15].Golestani et al.proposed an optimal switching placement method using a linear fragmented particle swarm optimization (PSO) algorithm and established a novel linear model for probability calculation of switch type offer for each candidate location [16].Ranjan et al.proposed an optimal switching placement method based on a genetic algorithm (GA) and a PSO algorithm and obtained the solution to a given objective function to enhance the reliability of a distribution system [17].
In this paper,we analyze the technical characteristics of switching device placement in the planning of power distribution systems and take the comprehensive reliability costs of the switching devices as the maximum objective function.For an effective and efficient decision-making with regard to switching device placement,a repulsive firefly algorithm (RFA)-based optimal switching device placement method is proposed.In this method,the influence of territorial repulsion during firefly courtship is considered,thus realizing the interactions of learning and competition among fireflies in the newly proposed RFA.We employ the sigmoid function to perform normalization tasks and represent the probability that switching devices are in a closed state.Finally,a binary optimal solution to the 0-1 planning configuration optimization problem for switching device placement is obtained using the RFA.The results of a simulation conducted on IEEE RBTS-BUS6 and actual feeder lines confirm the feasibility and efficiency of the proposed method.
The switching devices in power distribution systems are usually installed using a feeder automation mechanism to isolate fault sections.This method is quite helpful for quickly recovering non-fault sections in the power supply,effectively improving power supply reliability,and controlling user power shortage cost [1-3].With an increase in the number of switching device installations,the costs associated with equipment investment,maintenance,and operation have substantially increased [4-6].Power distribution systems in China are characterized by numerous loads,branches,and segments,making it impossible to realize global setting of the switching devices [7-9].In this context,research on the application of artificial intelligencebased optimization methods to determine the optimal location of switching devices is ongoing [10-14].
Abdelaziz et al.used a Tabu list with a variable size according to the system size and proposed a distribution system reconfiguration method based on a modified Tabu search (TS) algorithm [15].Golestani et al.proposed an optimal switching placement method using a linear fragmented particle swarm optimization (PSO) algorithm and established a novel linear model for probability calculation of switch type offer for each candidate location [16].Ranjan et al.proposed an optimal switching placement method based on a genetic algorithm (GA) and a PSO algorithm and obtained the solution to a given objective function to enhance the reliability of a distribution system [17].
In this paper,we analyze the technical characteristics of switching device placement in the planning of power distribution systems and take the comprehensive reliability costs of the switching devices as the maximum objective function.For an effective and efficient decision-making with regard to switching device placement,a repulsive firefly algorithm (RFA)-based optimal switching device placement method is proposed.In this method,the influence of territorial repulsion during firefly courtship is considered,thus realizing the interactions of learning and competition among fireflies in the newly proposed RFA.We employ the sigmoid function to perform normalization tasks and represent the probability that switching devices are in a closed state.Finally,a binary optimal solution to the 0-1 planning configuration optimization problem for switching device placement is obtained using the RFA.The results of a simulation conducted on IEEE RBTS-BUS6 and actual feeder lines confirm the feasibility and efficiency of the proposed method.
2 Mathematical modeling for switching device placement
In a power distribution system,the greater the number of switching devices,the higher the power supply reliability [17,18].However,the costs associated with equipment investment,operation,and maintenance will significantly increase with an increase in the number of switching devices,as shown in Fig.1.
Fig.1 Reliability-cost curves of the switching devices in a power distribution system
As shown in Fig.1,curve (a)～(c) represent the relationships between power supply reliability and equipment investment cost of switching devices under different switching device placement strategies.In these cases,although the power supply reliability is improved,the equipment investment cost (associated with the switching devices) increases.Curve (d)～(f) represent the relationship between power supply reliability and user power shortage cost under different settings.Similar to the previous cases,although the user power shortage cost is reduced,the equipment investment cost increases.
Notably,even if the number of installed switching devices is fixed,the installation position significantly affects the power supply reliability and user power shortage cost.Therefore,considering the power supply reliability,equipment investment cost,and user power shortage cost,the optimal switching device placement problem in power distribution systems becomes a trade-off optimization problem.To solve this problem,we take the comprehensive reliability costs of the switching devices as the maximum objective function and solve the optimization problem as follows:
Here,P is the difference in the economic benefit between distribution networks without switching devices and those with switching devices,L0 is the user power shortage cost without switching devices,IC is the equipment investment cost,MC is the operation and maintenance cost,LC is the user power shortage cost,DC is the equipment scrap cost,R is the average service availability index,R0 is the lowest reliability constraint of the power distribution system,N is the switching device number,Ni is the user number at load point i,and Ui is the average outage time at load point i.The reliability constraints help introduce the average service availability index (ASAI) to verify whether the electricity supply and demand meet the lowest reliability request of the power distribution system.
The equipment investment cost,operation and maintenance cost,user power shortage cost,and equipment scrap cost are generally calculated as follows [1,8].
(1) Equipment investment cost:
Here,CS is the present value of the switching device investment cost,i is the discount rate,and p represents the economic life of the switching devices.
(2) Operation and maintenance cost:
Here,C0 is the proportion of operation and maintenance cost in the equipment investment cost.
(3) User power shortage cost:
Here,WENS is the system power shortage,and K is the electricity production ratio.
(4) Equipment scrap cost:
Here,D0 is the proportion of equipment scrap cost in the equipment investment cost.
In a power distribution system,the greater the number of switching devices,the higher the power supply reliability [17,18].However,the costs associated with equipment investment,operation,and maintenance will significantly increase with an increase in the number of switching devices,as shown in Fig.1.
Fig.1 Reliability-cost curves of the switching devices in a power distribution system
As shown in Fig.1,curve (a)～(c) represent the relationships between power supply reliability and equipment investment cost of switching devices under different switching device placement strategies.In these cases,although the power supply reliability is improved,the equipment investment cost (associated with the switching devices) increases.Curve (d)～(f) represent the relationship between power supply reliability and user power shortage cost under different settings.Similar to the previous cases,although the user power shortage cost is reduced,the equipment investment cost increases.
Notably,even if the number of installed switching devices is fixed,the installation position significantly affects the power supply reliability and user power shortage cost.Therefore,considering the power supply reliability,equipment investment cost,and user power shortage cost,the optimal switching device placement problem in power distribution systems becomes a trade-off optimization problem.To solve this problem,we take the comprehensive reliability costs of the switching devices as the maximum objective function and solve the optimization problem as follows:
Here,P is the difference in the economic benefit between distribution networks without switching devices and those with switching devices,L0 is the user power shortage cost without switching devices,IC is the equipment investment cost,MC is the operation and maintenance cost,LC is the user power shortage cost,DC is the equipment scrap cost,R is the average service availability index,R0 is the lowest reliability constraint of the power distribution system,N is the switching device number,Ni is the user number at load point i,and Ui is the average outage time at load point i.The reliability constraints help introduce the average service availability index (ASAI) to verify whether the electricity supply and demand meet the lowest reliability request of the power distribution system.
The equipment investment cost,operation and maintenance cost,user power shortage cost,and equipment scrap cost are generally calculated as follows [1,8].
(1) Equipment investment cost:
Here,CS is the present value of the switching device investment cost,i is the discount rate,and p represents the economic life of the switching devices.
(2) Operation and maintenance cost:
Here,C0 is the proportion of operation and maintenance cost in the equipment investment cost.
(3) User power shortage cost:
Here,WENS is the system power shortage,and K is the electricity production ratio.
(4) Equipment scrap cost:
Here,D0 is the proportion of equipment scrap cost in the equipment investment cost.
3 Improved firefly algorithm considering repulsion forces
The firefly algorithm,proposed by Yang et al.in 2008,has been a widely-used artificial bionic optimization search algorithm [19,21]; it is based on how fireflies attract surrounding ones with their own light in the courtship period.In the optimization process of the algorithm,fireflies are randomly initialized in the solution space of the target maximum objective function.The more superior the target firefly behaves,the more attractive its luminance to the others.The influences of distance and communication media are considered to obtain the final solution for the target optimization function.The attractiveness between fireflies is inversely proportional to the distance and light absorption ability of the communication media.Therefore,the attractiveness between fireflies Xm and Xn can be defined as:
Here,β0 is the maximal attractiveness between fireflies,which is only related to the objective function values of the fireflies Xm and Xn,γ is the light absorption parameter,which is normally set to γ=1 as a constant,and rmnis the distance between the fireflies Xm and Xn.
In the t-th iteration,if firefly Xm(t) is the most attractive one for the target firefly Xn(t),the subsequent position of firefly Xn(t) after the movement can be expressed as:
Here,the parameter α～N(0,1) is a random step factor satisfying a normal distribution,and K represents the disturbance level.
To further improve the global optimization search ability of the conventional firefly algorithm,the RFA was proposed.The proposed algorithm considers the influence of territorial repulsion [22] during firefly courtship,thus realizing the interactions of learning and competition among the fireflies.The set of male fireflies was assumed as
and the female set was assumed as
the repulsive neighborhood of the former set can be described as
If two male fireflies enter the same repulsive neighborhood during the optimization process,the disadvantageous one (i.e.,the one with a lower objective function value) would escape along the diameter direction,as shown in Fig.2.To perform a quick search of the entire solution space,we introduce a gender-exchange mechanism to ensure that the optimal firefly in the repulsive neighborhood is male and avoid early slipping into the local optimal solution.
Fig.2 Diagram of repulsive infiuence between firefiies in RFA
Based on the discussions above,the steps involved in the proposed RFA are as follows:
Table1 Steps involved in the repulsive firefly algorithm
The firefly algorithm,proposed by Yang et al.in 2008,has been a widely-used artificial bionic optimization search algorithm [19,21]; it is based on how fireflies attract surrounding ones with their own light in the courtship period.In the optimization process of the algorithm,fireflies are randomly initialized in the solution space of the target maximum objective function.The more superior the target firefly behaves,the more attractive its luminance to the others.The influences of distance and communication media are considered to obtain the final solution for the target optimization function.The attractiveness between fireflies is inversely proportional to the distance and light absorption ability of the communication media.Therefore,the attractiveness between fireflies Xm and Xn can be defined as:
Here,β0 is the maximal attractiveness between fireflies,which is only related to the objective function values of the fireflies Xm and Xn,γ is the light absorption parameter,which is normally set to γ=1 as a constant,and rmnis the distance between the fireflies Xm and Xn.
In the t-th iteration,if firefly Xm(t) is the most attractive one for the target firefly Xn(t),the subsequent position of firefly Xn(t) after the movement can be expressed as:
Here,the parameter α～N(0,1) is a random step factor satisfying a normal distribution,and K represents the disturbance level.
To further improve the global optimization search ability of the conventional firefly algorithm,the RFA was proposed.The proposed algorithm considers the influence of territorial repulsion [22] during firefly courtship,thus realizing the interactions of learning and competition among the fireflies.The set of male fireflies was assumed as and the female set was assumed as the repulsive neighborhood of the former set can be described as If two male fireflies enter the same repulsive neighborhood during the optimization process,the disadvantageous one (i.e.,the one with a lower objective function value) would escape along the diameter direction,as shown in Fig.2.To perform a quick search of the entire solution space,we introduce a gender-exchange mechanism to ensure that the optimal firefly in the repulsive neighborhood is male and avoid early slipping into the local optimal solution.
Fig.2 Diagram of repulsive infiuence between firefiies in RFA
Based on the discussions above,the steps involved in the proposed RFA are as follows:
Table1 Steps involved in the repulsive firefly algorithm
4 Realization of optimal switching device placement based on RFA
The optimal switching device placement task can be treated as a 0-1 planning configuration optimization problem [23].Inspired by Kennedy et al.[24-26],we obtain the binary optimal solution for the proposed RFA as follows.
First,we assume firefly movement vectors,such as β( Z -Yk ),β( Z -Xk ),and γ( X k(t + 1) - X l(t )),shown in (8)-(10),as V = [ v1 ,...,vL].We then employ the Sigmoid function to perform normalization tasks to represent the probability that the switching devices are in a closed state [25,26]:
Based on the comparison of the closure probability P(vi) and random variables,we can realize the binarization of the firefly movement vectors and obtain the firefly movement vector D = [ d1 ,...,d L] of the binary RFA,with the following condition:
Here, θ～U(0,1) denotes the random variable under the uniform distribution U(0,1).Fig.3 shows the implementation of the RFA-based switching device placement optimization for power distribution systems.
The optimal switching device placement task can be treated as a 0-1 planning configuration optimization problem [23].Inspired by Kennedy et al.[24-26],we obtain the binary optimal solution for the proposed RFA as follows.
First,we assume firefly movement vectors,such as β( Z -Yk ),β( Z -Xk ),and γ( X k(t + 1) - X l(t )),shown in (8)-(10),as V = [ v1 ,...,vL].We then employ the Sigmoid function to perform normalization tasks to represent the probability that the switching devices are in a closed state [25,26]:
Based on the comparison of the closure probability P(vi) and random variables,we can realize the binarization of the firefly movement vectors and obtain the firefly movement vector D = [ d1 ,...,d L] of the binary RFA,with the following condition:
Here, θ～U(0,1) denotes the random variable under the uniform distribution U(0,1).Fig.3 shows the implementation of the RFA-based switching device placement optimization for power distribution systems.
5 Experimental simulation and result analysis
To verify the performance of the newly proposed RFA for the optimal switching device placement in a power distribution system,the TS algorithm [15,27],GA [16,28],and PSO algorithm [17,29] were introduced as the control group.

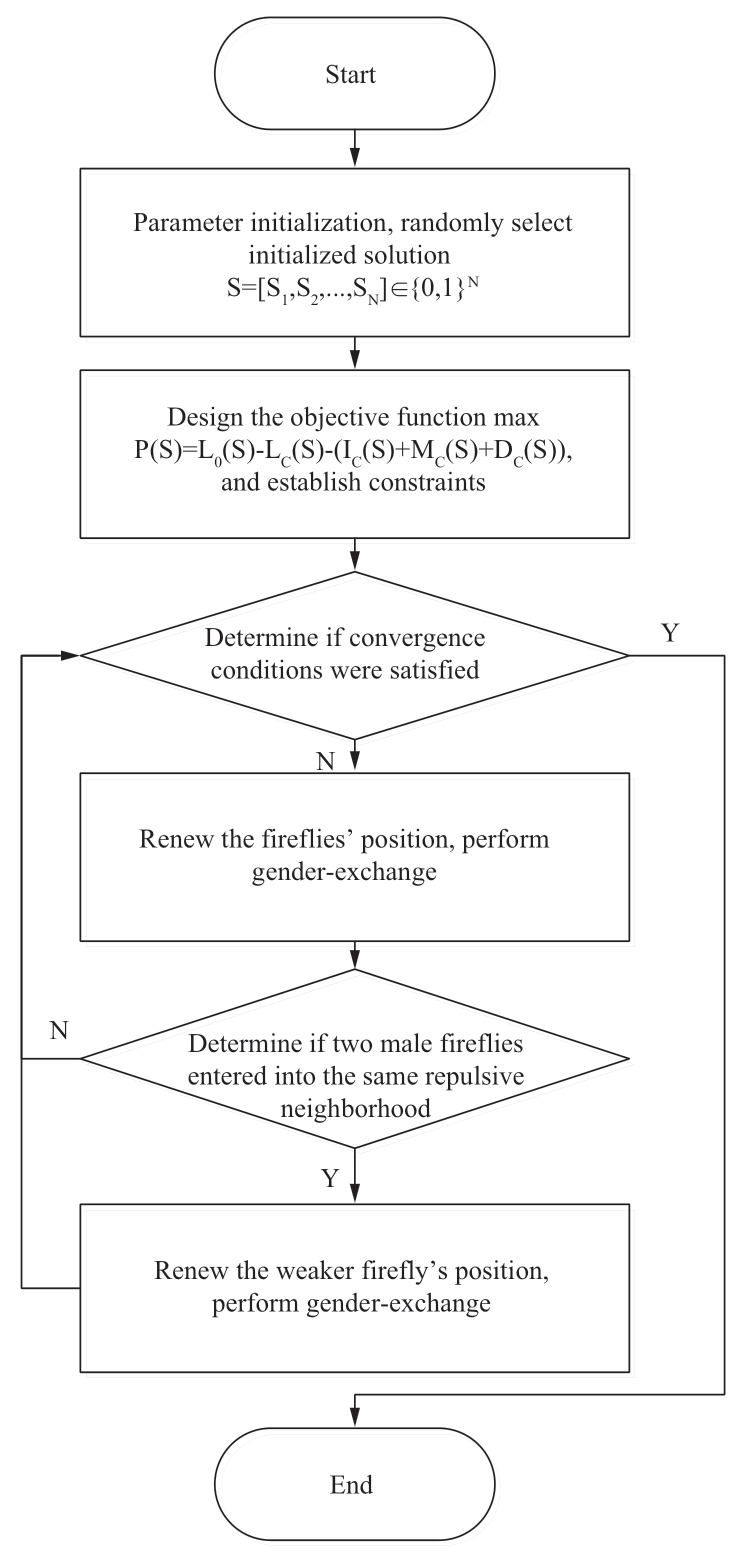

Fig.3 Flowchart of RFA-based switching device placement optimization for power distribution systems
We take the equipment cost of each switching device as 25,000 yuan.We assume the economic life of a switching device as 20 years,the discount rate as 10%,the proportion of operation and maintenance cost in the equipment investment cost as 3%,and the proportion of equipment scrap cost in the equipment investment cost as 5%.The electricity production ratio is set as 9.59 yuan/kWh,the average failure rates of the main feeder line and branch line are 0.1 and 0.01 per kilometer per year,respectively,the average repair times of the main feeder line and branch line are 4 and 10 h,the operation time of a switching device is 20 min,and the minimum power supply reliability rate is 99.98%.
To verify the performance of the newly proposed RFA for the optimal switching device placement in a power distribution system,the TS algorithm [15,27],GA [16,28],and PSO algorithm [17,29] were introduced as the control group.
Fig.3 Flowchart of RFA-based switching device placement optimization for power distribution systems
We take the equipment cost of each switching device as 25,000 yuan.We assume the economic life of a switching device as 20 years,the discount rate as 10%,the proportion of operation and maintenance cost in the equipment investment cost as 3%,and the proportion of equipment scrap cost in the equipment investment cost as 5%.The electricity production ratio is set as 9.59 yuan/kWh,the average failure rates of the main feeder line and branch line are 0.1 and 0.01 per kilometer per year,respectively,the average repair times of the main feeder line and branch line are 4 and 10 h,the operation time of a switching device is 20 min,and the minimum power supply reliability rate is 99.98%.
5.1 Case A:Optimal switching device placement in the case of IEEE RBTS-BUS6 dataset
The aforementioned algorithms were employed to optimize the placement of the switching devices in a 10 kV part of the IEEE RBTS-BUS6 system [5].Similar placement optimization results were obtained for this small-scale system,while the average time consumed by the RFA was less than those by the TS algorithm,GA,and PSO algorithm.Table 2 lists the placement optimization results of the switching devices.
Table2 Optimal switching device placement in a 10 kV part of the IEEE RBTS-BUS6 system
As shown in the optimization results,four switching devices were installed in sections 7,21,29,and 31 in the optimized strategy,and the equipment investment cost increased by approximately 14,000 yuan.With the optimized switching device placement,the ASAI increased by 2%,and the power supply reliability was enhanced with certain economic benefits.
The aforementioned algorithms were employed to optimize the placement of the switching devices in a 10 kV part of the IEEE RBTS-BUS6 system [5].Similar placement optimization results were obtained for this small-scale system,while the average time consumed by the RFA was less than those by the TS algorithm,GA,and PSO algorithm.Table 2 lists the placement optimization results of the switching devices.
Table2 Optimal switching device placement in a 10 kV part of the IEEE RBTS-BUS6 system
As shown in the optimization results,four switching devices were installed in sections 7,21,29,and 31 in the optimized strategy,and the equipment investment cost increased by approximately 14,000 yuan.With the optimized switching device placement,the ASAI increased by 2%,and the power supply reliability was enhanced with certain economic benefits.
5.2 Case B:Optimal switching device placement for actual feeder lines in a certain area
In this case,we used the four algorithms for the placement optimization of the switching devices,as shown in Fig.4.Table 3 and 4 list the length and load data of the feeder lines,respectively.
Fig.4 Schematic of actual feeder lines
Since the placement optimization results of the switching devices are largely the same,we first compared the power distribution systems before and after the optimization,as listed in Table 5.Table 6 gives the optimal placement comparison of the switching devices in the power distribution system.
Table3 Actual length data of feeder lines
Table4 Actual load data of feeder lines

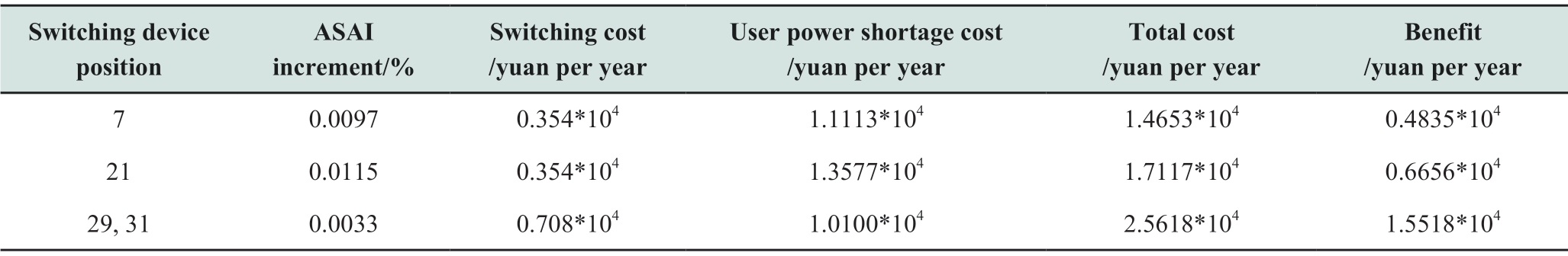

Table5 Comparison of power distribution system before and after optimization
Table6 Comparison of optimal switching device placement in a power distribution system
According to the details in Table 2 and RFA-based optimization results listed in Table 6,if we install switching devices between 6-10,10-14,and 17-19,the equipment investment cost would increase by 10,600 yuan per year,while the power supply reliability would increase by 0.0119%,the user power shortage cost would reduce by 43.8 k,and the total cost would drop by 33.2 k.
The four algorithms could obtain optimal solutions,and the generations of these algorithms,in which the optimal solution was obtained,were basically the same.However,the optimal solution probability of the GA is slightly lower,indicating a higher probability for GA to obtain a local optimal solution.The RFA gave the highest probability and was least time-consuming.
In this case,we used the four algorithms for the placement optimization of the switching devices,as shown in Fig.4.Table 3 and 4 list the length and load data of the feeder lines,respectively.
Fig.4 Schematic of actual feeder lines
Since the placement optimization results of the switching devices are largely the same,we first compared the power distribution systems before and after the optimization,as listed in Table 5.Table 6 gives the optimal placement comparison of the switching devices in the power distribution system.
Table3 Actual length data of feeder lines
Table4 Actual load data of feeder lines
Table5 Comparison of power distribution system before and after optimization
Table6 Comparison of optimal switching device placement in a power distribution system
According to the details in Table 2 and RFA-based optimization results listed in Table 6,if we install switching devices between 6-10,10-14,and 17-19,the equipment investment cost would increase by 10,600 yuan per year,while the power supply reliability would increase by 0.0119%,the user power shortage cost would reduce by 43.8 k,and the total cost would drop by 33.2 k.
The four algorithms could obtain optimal solutions,and the generations of these algorithms,in which the optimal solution was obtained,were basically the same.However,the optimal solution probability of the GA is slightly lower,indicating a higher probability for GA to obtain a local optimal solution.The RFA gave the highest probability and was least time-consuming.
6 Conclusion
To improve the power supply reliability of distribution networks and reduce the power consumption loss of customers,a so-called repulsive firefly algorithm (RFA)-based optimal switching device placement method is proposed.In this method,the influence of territorial repulsion during firefly courtship is considered,thus realizing the interactions of learning and competition among fireflies in the newly proposed RFA.We employed the Sigmoid function to perform normalization tasks to represent the probability that switching devices are in a closed state.Finally,a binary optimal solution to the 0-1 planning configuration optimization problem for switching device placement is obtained using the RFA.
The proposed algorithm was applied to IEEE RBTSBUS6 and an actual feeder line.With optimization,the reliability index of the power distribution system could be improved,and some economic benefits were obtained.The simulation results confirmed the feasibility and efficiency of the proposed method.In future research,the team will explore the application of RFA algorithm in setting value calculation of relay protection and distribution network automation control.
Acknowledgements
This work was supported by the State Grid Science and Technology Project “Research on Technology System and Applications Scenarios of Artificial Intelligence in Power System” (No.SGZJ0000KXJS1800435); Key Technology Project of State Grid Shanghai Municipal Electric Power Company “Research and demonstration of Shanghai power grid reliability analysis platform”; Key Technology Project of China Electric Power Research Institute “Research on setting calculation technology of power grid phase protection based on Artificial Intelligence” (JB83-19-007).
References
[1] Billinton R,Jonnavithula S (1996) Optimal switching device placement in radial distribution systems.IEEE transactions on power delivery,11(3):1646-1651
[2] Yan C,Zhou L,Yao W,et al (2019) Probabilistic small signal stability analysis of power system with wind power and photovoltaic power based on probability collocation method.Global Energy Interconnection,2(1):19-28
[3] Modern optimisation techniques in power systems.Springer Science ＆ Business Media,2013
[4] Wang Z,Feng Z,Li Y,et al (2019) Natural gas consumption forecasting model based on coal-to-gas project in China.Global Energy Interconnection,2(5):430-43
[5] Li J,Dong P (2019) Global maximum power point tracking for solar power systems using the hybrid artificial fish swarm algorithm.Global Energy Interconnection,2(4):351-360
[6] Liang Y,Wang Y,Huang L,et al (2019) Design and verification of a satellite-terrestrial integrated IP network model for the Global Energy Interconnection.Global Energy Interconnection,2(6):495-502
[7] Ray S,Bhattacharya A,Bhattacharjee S (2016) Optimal placement of switches in a radial distribution network for reliability improvement.International Journal of Electrical Power ＆ Energy Systems,76:53-68
[8] Nguyen CP,Flueck AJ (2015) A novel agent-based distributed power flow solver for smart grids.IEEE transactions on Smart Grid,6(3):1261-1270
[9] Gholami M,Moeini-Aghtaie M,Safdarian A,et al (2017) Maintenance based distribution network expansion planning.In:2017 Iranian Conference on Electrical Engineering (ICEE),IEEE,pp:1004-1009
[10] Li J,Dong P (2019) Global maximum power point tracking for solar power systems using the hybrid artificial fish swarm algorithm.Global Energy Interconnection,2(4):351-360
[11] Liu G,Qin H,Tian R,et al (2019) Non-dominated sorting culture differential evolution algorithm for multi-objective optimal operation of Wind-Solar-Hydro complementary power generation system.Global Energy Interconnection,2(4):368-374
[12] Sekhar GTC,Sahu RK,Baliarsingh AK,et al (2016) Load frequency control of power system under deregulated environment using optimal firefly algorithm.International Journal of Electrical Power ＆ Energy Systems,Vol.74,pp:195-211
[13] Teshome DF,Lee CH,Lin YW,et al (2016) A modified firefly algorithm for photovoltaic maximum power point tracking control under partial shading.IEEE Journal of Emerging and Selected Topics in Power Electronics,5(2):661-671
[14] Liu Y,Wang H,Han S,et al (2019) Quantitative method for evaluating detailed volatility of wind power at multiple temporalspatial scales.Global Energy Interconnection,2(4):318-327
[15] Abdelaziz AY,Mohamed FM,Mekhamer SF,et al (2010) Distribution system reconfiguration using a modified Tabu Search algorithm.Electric Power Systems Research,80(8):943-953
[16] Golestani S,Tadayon M (2011) Optimal switch placement in distribution power system using linear fragmented particle swarm optimization algorithm preprocessed by GA.In:2011 8th International Conference on the European Energy Market (EEM),IEEE,pp:537-542
[17] Ranjan A,Rai JN (2014) Optimal Switch Placement in Radial Distribution System Using GA and PSO.International Journal of Scientific ＆ Engineering Research,5(5):1356-1361
[18] Deng J,Liu Y,Li H (2019) Reliability Analysis of Rotating Equipment Based on Weibull Distribution.In:2019 Chinese Control And Decision Conference (CCDC),IEEE pp:1059-1065
[19] Liu L,Wang S,Huang R (2019) An Estimation Method for Marginal Cost of Distribution System Reliability based on Consumer-Centric Reliability Assessment.Energy Procedia,Vol.158,pp:3296-3301
[20] Pradhan PC,Sahu RK,Panda S (2016) Firefly algorithm optimized fuzzy PID controller for AGC of multi-area multisource power systems with UPFC and SMES.Engineering Science and Technology,an International Journal,19(1):338-354
[21] Balachennaiah P,Suryakalavathi M,Nagendra P (2016) Optimizing real power loss and voltage stability limit of a large transmission network using firefly algorithm.Engineering Science and Technology,an International Journal,19(2):800-810
[22] Zile M (2019) Routine Test Analysis in Power Transformers by Using Firefly Algorithm and Computer Program.IEEE Access,Vol.7,pp:132033-132040
[23] Kosheleva O,Ceberio M,Kreinovich V (2017) Attraction-Repulsion Forces Between Biological Cells:A Theoretical Explanation of Empirical Formulas.In:2017 Annual Meeting of the Constraint Programming and Decision Making,pp:28
[24] Wang Z,Zhang B,Wang Y (2016) Review of power distribution network planning.In:Electrical and Control Engineering ＆ Materials Science and Manufacturing:The Proceedings of Joint Conferences of the 6th (ICECE2015) and the 4th (ICMSM2015),pp:141-150
[25] Kennedy J,Eberhart RC (1997) A discrete binary version of the particle swarm algorithm.In:1997 IEEE International Conference on Systems,Man,and Cybernetics.IEEE,1997,5:4104-4108
[26] Jiang F,Xia H,Tran Q A,et al (2017) A new binary hybrid particle swarm optimization with wavelet mutation.Knowledge-Based Systems,Vol.130,pp:90-101
[27] Strasser S,Goodman R,Sheppard J,et al (2016) A new discrete particle swarm optimization algorithm.In:Proceedings of the Genetic and Evolutionary Computation Conference 2016.ACM,pp:53-60
[28] Qiu M,Fu Z,Eglese R,et al (2018) A Tabu Search algorithm for the vehicle routing problem with discrete split deliveries and pickups.Computers ＆ Operations Research,Vol.100,pp:102-116
[29] Kramer O.Genetic algorithm essentials.Springer,2017
[30] Yoshida H,Fukuyama Y (2018) Parallel Multipopulation Differential Evolutionary Particle Swarm Optimization for Voltage and Reactive Power Control.Electrical Engineering in Japan,204(3):31-40
To improve the power supply reliability of distribution networks and reduce the power consumption loss of customers,a so-called repulsive firefly algorithm (RFA)-based optimal switching device placement method is proposed.In this method,the influence of territorial repulsion during firefly courtship is considered,thus realizing the interactions of learning and competition among fireflies in the newly proposed RFA.We employed the Sigmoid function to perform normalization tasks to represent the probability that switching devices are in a closed state.Finally,a binary optimal solution to the 0-1 planning configuration optimization problem for switching device placement is obtained using the RFA.
The proposed algorithm was applied to IEEE RBTSBUS6 and an actual feeder line.With optimization,the reliability index of the power distribution system could be improved,and some economic benefits were obtained.The simulation results confirmed the feasibility and efficiency of the proposed method.In future research,the team will explore the application of RFA algorithm in setting value calculation of relay protection and distribution network automation control.
